Linear Volumetric Liquid Filling Machine Manufacturer

Liquid/ Dairy section

Linear Volumetric Liquid Filling Machine Manufacturer

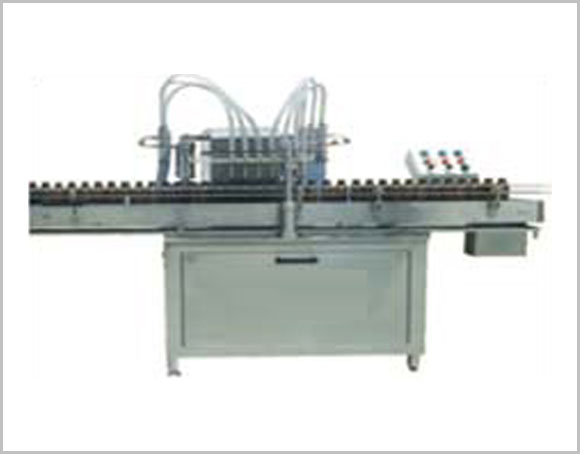

Linear Volumetric Filling Machine

Click here to download Video

TECHNICAL SPECIFICATION

Technical Specification
Output/Hour
6 x 6
8 x 8
12 x 8
16 x 8
5000
7000
9000
14000
Capacity 30ml to 250ml (With the help of change parts)
Accuracy ± 0.05 to 1 % due to piston dozing principle
Electrical Rating 440V, 3 Phase, 50 Hz, 4 Wire system
Power require 4 H.P. 3 Phase
Machine Dimensions 2500 mm (L) x 1250 mm (W) x 2150 m (H)
Bottle dia. Min. 25 to Max. 80mm
Bottle Height Min 38mm to Max. 200mm
Cap 22mm, 25mm & 28mm
Bottle type Glass & Pet
Bottle Shape Round & Flat

Salient Features

  • cGMP model based on advanced technology
  • Single Operator for two operations
  • No contamination as immediate sealing of filled bottles
  • Centralized volume adjustment system - No down time in volume settings
  • No bottle- No Fill system
  • Additional sensor provided on Cap Chute to avoid damage of caps during rotation
  • Sensor for No cap in chute- Machine stops
  • Separate Variable Drive to control speed of conveyor
  • Electronic liquid level controller and pneumatically controlled control valve
  • PLC Control
  • Acrylic cabinet to avoid dust particle during operation

Manufacturer, Supplier, Exporter & Servicing Of Linear Volumetric Filling Machine, Volumetric Liquid Filling Machine, cGMP Model, Liquid Filling Machine, India
