Tube Filling Machine


Tube Filling Machine

Tube Filling Machine

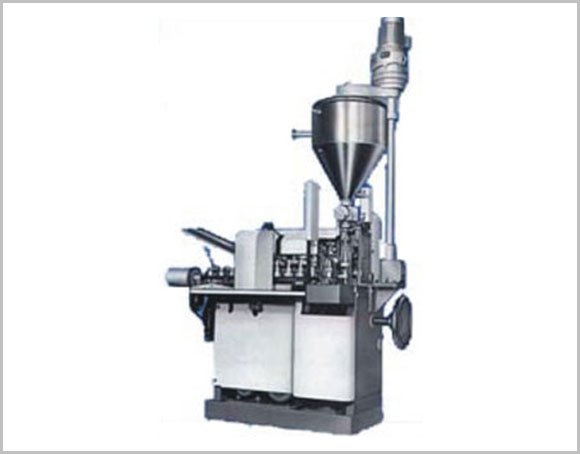

Vitro Pharma Machine provides Tube Filling Machine which is used for filling of creams and ointments/ paste in pharmaceuticals, cosmetics and foods industries. This Tube Filling machines operate in an automatic process and are capable of filling tubes of diverse sizes.


  • Capability to handle a vast range of tube sizes like tube diameters from 10 mm to 40 mm and lengths from 40 mm to 200 mm.
  • Automatic cap fitting.
  • No-tube-no-fill device
  • Automatic tube infeed and Simultaneous accessibility of many tube holders in case of manual infeed.
  • Tube cleaning device for dust removal which is specifically required for pharmaceutical and food industries.
  • Adjustable filling pump with different volumes - Ease within the removal of pump components for cleanup and transformation.
  • Contact components are corrosion resistant, No-tube-no-fill device, Blow-off device to cut "Rat tail" of highly viscous products.
  • Photoelectric tube registration for automatic positioning of tube orientation.
Multiple folding stations for tube closure.
  • Code marking on the closure with digits or letters.
  • Transportation of filled tubes forward and backward.


  • Output, tubes depending upon tube size and product per hour 2400-3600.
  • Attendance 1 operator.
  • Power consumption 1 KW
  • Floor space occupied 1.2 x 0.7 m
  • Length-including paste container 1.7m ( 5' - 7" )
  • Length-excluding paste container 1.1m ( 3' )
  • Net weight 550kg (1200 Ibs)
  • Gross weight 750kg (1650 Ibs)
  • Shipping volume 3m3 (100 cu.ft)


A cream stirring device, heating device, jar filling attachment, counting device, flange connection in place of the hopper, stainless steel sterilizable pump, spring-loaded tube holders etc. can be provided for specific requirements.
